Operator Cabin Pressuriser & HEPA filtration
Proudly engineered and made in Australia to suit local conditions: CleanCab air filtration systems offers a range of cabin air quality solutions to keep operators safe in mining, civil, and agricultural environments.
To ensure you and your staff stay safe from dust, fibres and other dangerous airborne contaminants, CleanCab monitoring system provides continuous monitoring of cabin pressure and CO² levels to maintain a safe operating environment. The system automatically adjusts fan speed to maintain optimal pressure and provide a visual and audible alert when conditions fall outside acceptable parameters.
The PowerCore Edge Blower Motor with the Hepa filtration/Charcoal filtration, is capable of 550m3/h (323 CFM) free flow, and 178m3/h (105 CFM) operating load with all filters installed.
DESIGNED TO MEET ISO 23875 – For high-risk work environments, meeting this standard is now mandatory, not optional.

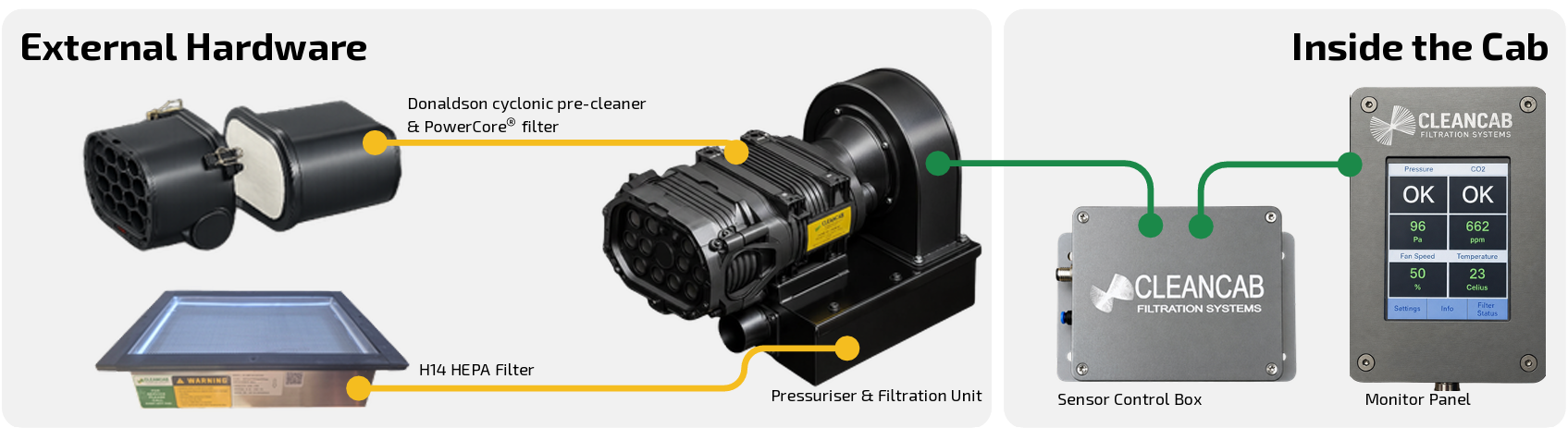

Two Stage Air Filtration
Integrates a cyclonic PowerCore pre-cleaner to remove most coarser dust & fine particles (~99.97%), extending the life of the individually certified H14 HEPA filter which will capture final respirate particles with 99.995% efficiency.
| ⊙ Primary Filter | Donaldson PowerCore |
| ⊙ Primary efficiency | 99.97% |
| ⊙ Primary service interval | 250 hr |
| ⊙ Secondary Filter | H14 HEPA |
| ⊙ Secondary efficiency | 99.995% |
| ⊙ HEPA certified | Individually certified |
| ⊙ HEPA certificates | Via QR code on filter |
| ⊙ HEPA service interval | 1000 hr (4x longer life) |
Fan/Pressuriser Unit
High-Capacity Pressuriser: A heavy-duty, brushless, auto-adjusting fan delivering up to 600 Pa static pressure to overcome cabin leaks. The pressuriser unit has multiple ducting and mounting positions allowing for omni-directional installation on any model.
| ⊙ Motor | Brushless VS |
| ⊙ Free airflow | 550 m³/h | 323 CFM |
| ⊙ Loaded airflow | 178 m³/h | 105 CFM |
| ⊙ Max static pressure | ~600 Pa |
| ⊙ Target cabin pressure | 35 Pa (30 - 100) |
| ⊙ Power | 24V - 12V |
| ⊙ Warranty | 10,000 Hrs / 2 Yrs |
| ⊙ Dimensions (mm) | 523(L) x305(W) x350(H) |
| ⊙ Gross Weight (kg) | 14 kg |
Monitoring & Alerts
The in-cab controller monitors conditions via precision NDIR and CO₂ sensors in real-time, actively adjusting fan speed to ensure target levels. The colour LED screen displays real-time Pa, CO₂, fan speed, temperature, and humidity with escalating visible & audible alerts if target levels are exceeded.
| ⊙ Sensors & Range | NDIR (±3%) ~500 Pa CO₂ ~5,000 PPM |
| ⊙ Altitude Compensation | Yes - Built-in |
| ⊙ Auto Cabin Purge | 1. Start-up Purge 2. CO₂ >1200ppm |
| ⊙ Adjustable Thresholds | Yes, via App |
| ⊙ Monitor Screen (LED) | Colour & Touch |
| ⊙ Display dimensions (mm) | 105(L) x70(W) x30(H) |
| ⊙ Sensor Box dimensions (mm) | 10,000 Hrs / 2 Yrs |
| ⊙ Dimensions (mm) | 150(L) x90(W) x43(H) |

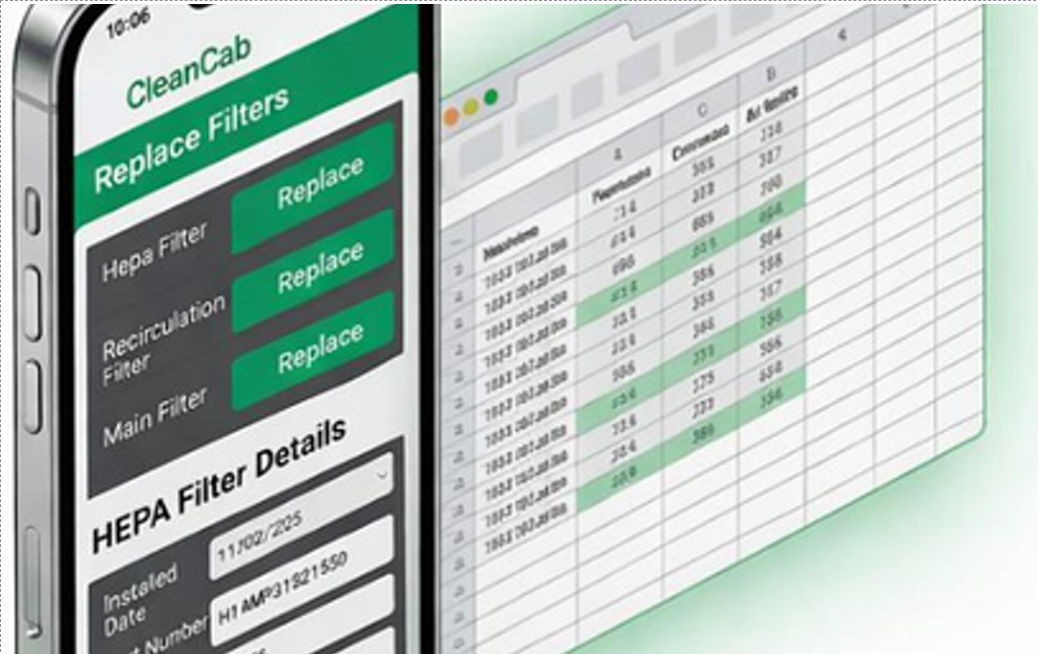

Audit-Ready Digital Logging:

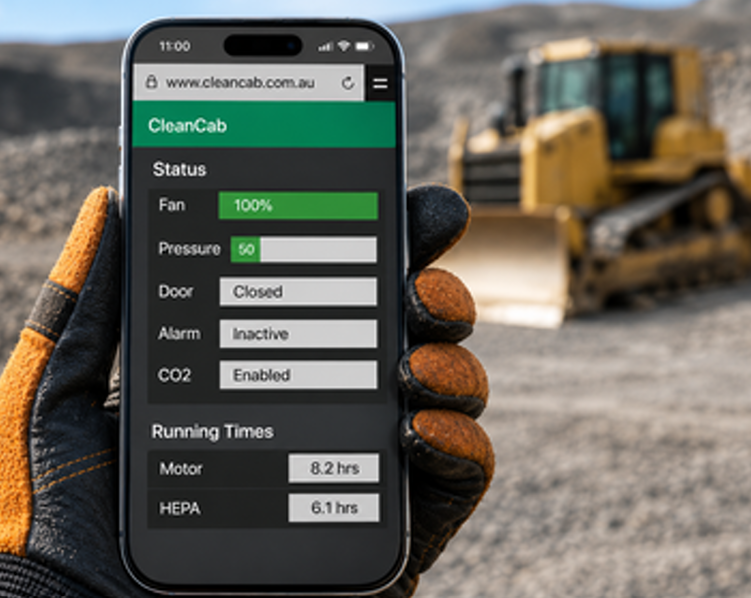

The system seamlessly pairs with the CleanCab App via Bluetooth, replacing paper logbooks by digitally recording alarm histories, exact filter run times, and commissioning records for simple compliance reporting.
App-based Servicing
Smart diagnostics, leak test & firmware updates
24/7 Support
Troubleshooting guides & live help
Parts stocked across
Australia Made locally with next-day delivery parts availability
Extended HEPA Life
Multi-stage design allows ~4x longer HEPA life
Modular & Repairable:
Replace only the failed part, not the whole unit
2-year Warranty:
10,000-hour rated brushless motor
