Muster Fittings and Parts – Fire Suppression Systems

Muster Fittings & Parts, Extinguishers

Portable Fire Extinguishers & Blankets

M2CBXXX Muster Cylinder Brackets

M2CKXXX Muster Cylinder Kits

M2CXXX Muster Cylinders only

Associated Components and Spare Parts

Portable Fire Extinguishers


Portable Fire Extinguishers
Model	Type	Rating	Width (mm)	Height (mm)	Weight (kg)
DFS-1s	1kg Powder	1A10B:E	79	330	1.8
DFS-25s	2.5kg Powder	3A40B:E	130	423	4.6
DFS-45s FSS	4.5kg Powder	4A40B:E	158	460	7.7
DFS-9s	9kg Powder	6A80B:E	178	590	13.4

Fire Blankets



Model	Type	Height (cm)	Width (cm)
43-FS120	Fibreglass woven cloth	120	120
43-FS128	Fibreglass woven cloth	120	180
43-FS180	Fibreglass woven cloth	180	180

M2CBXXX Muster Cylinder Brackets

Muster fittings and Parts fire suppression - cylinder brackets

The new version of the Cylinder Bracket Kit includes a new bracket and offers enhanced flexibility by removing the Safety Relief Valve (M2SRVP), giving customers the option to select either a Burst Disc (M2BDA01) or Safety Relief Valve (M2SRVP) according to the customer’s preference.


M2CBXXX Muster Cylinder Brackets
	Part No.	Part Desc.	Superseded Part No.	Superseded Part Desc.
	M2CB01523	Muster Cylinder Bracket 15/23 Litres	M2CB01523SLR	Muster Cylinder Bracket for slimline Cylinder 15/23 Litres
	M2CB038	Muster Cylinder Bracket 38 Litres	M2CB02238	Muster Bracket for Cylinder 22/38 Litres
	M2CB045	Muster Cylinder Bracket 45 Litres	M2CB045SLR	Muster Bracket for Cylinder 45 Litres
	M2CB066	Muster Cylinder Bracket 66 Litres	M2CB66110	Muster Bracket for Cylinder 88/110 Litres
	M2CB110	Muster Cylinder Bracket 110 Litres	M2CB66110	Muster Bracket for Cylinder 88/110 Litres

Upgrades to Cylinder Bracket Kits, in addition to the new brackets.
The new cylinder kits, provide customers with increased flexibility, by excluding the Cylinder Relief Valve (M2SRVP), allowing them the freedom to choose between a Burst Disc (M2BDA01) or Safety Relief Valve as desired.

M2CKXXX Muster Cylinder Kits

Typical traditional cylinder kit — Typical traditional Cylinder Kit

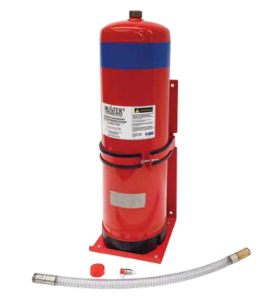

Typical slimline cylinder kit — Typical Slimline Muster Cylinder Kit



Part No.	Part Desc.	Superseded Part No.	Superseded Part Desc.
M2CKM015SL	Slimline Muster Cylinder Kit 15 Litres	M2CK015SL	Muster Cylinder Kit 15 Litres
M2CKM023SL	Slimline Muster Cylinder Kit 23 Litres	M2CK023SL	Muster Cylinder Kit 23 Litres
M2CKM015	Muster Cylinder Kit 15 Litres	M2CK015	Muster Cylinder Kit 15 Litres
M2CKM023	Muster Cylinder Kit 23 Litres	M2CK023	Muster Cylinder Kit 23 Litres
M2CKM038	Muster Cylinder Kit 38 Litres	M2CK038	Muster Cylinder Kit 38 Litres
M2CKM045	Muster Cylinder Kit 45 Litres	M2CK045	Muster Cylinder Kit 45 Litres
M2CKM066	Muster Cylinder Kit 66 Litres	M2CK066	Muster Cylinder Kit 88/110 Litres
M2CKM110	Muster Cylinder Kit 110 Litres	M2CK110	Muster Cylinder Kit 110 Litres

Key Features – Muster Cylinder Kits

Robust Mild Steel construction
Easy Installation and Maintenance
Built tough to withstand vibrations and shocks
Versatile mounting choices, adaptable to diverse applications
Fully Certified to meet AS5062-2022 Australia Standard
Corrosion resistant coating for extended product lifetime

Slimline Cylinders

Constructed to AS2470, Slimline cylinder with mild steel brackets do not require vibration eliminators thanks to their lighter design characteristics. Slimline cylinder kit contains a specially designed pressure relief valve. This will be secured directly on the cylinder valve.
All other features and components including the straps to secure the cylinder are same as the traditional type cylinder system with stainless steel components to ensure longevity and durability in harsh conditions.

M2CXXX Muster Cylinders only



Part No.	Part Desc.	Cylinder Volume	Height (mm)	Diameter (mm)
M2C015SL	Slimline Muster Cylinder	15L	524	216
M2C023SL	Slimline Muster Cylinder	23L	744	216
M2C038	Muster Cylinder	38L	750	290
M2C045	Muster Cylinder	45L
M2C066	Muster Cylinder	66L	760	380
M2C110	Muster Cylinder	110L	1160	380
M2CKM015	Lay Fat Muster Cylinder	15L
M2CKM020	Lay Fat Muster Cylinder	20L
M2CKM025	Lay Fat Muster Cylinder	25L
M2CKM030	Lay Fat Muster Cylinder	30L
M2CKM066LF	Lay Fat Muster Cylinder	66L

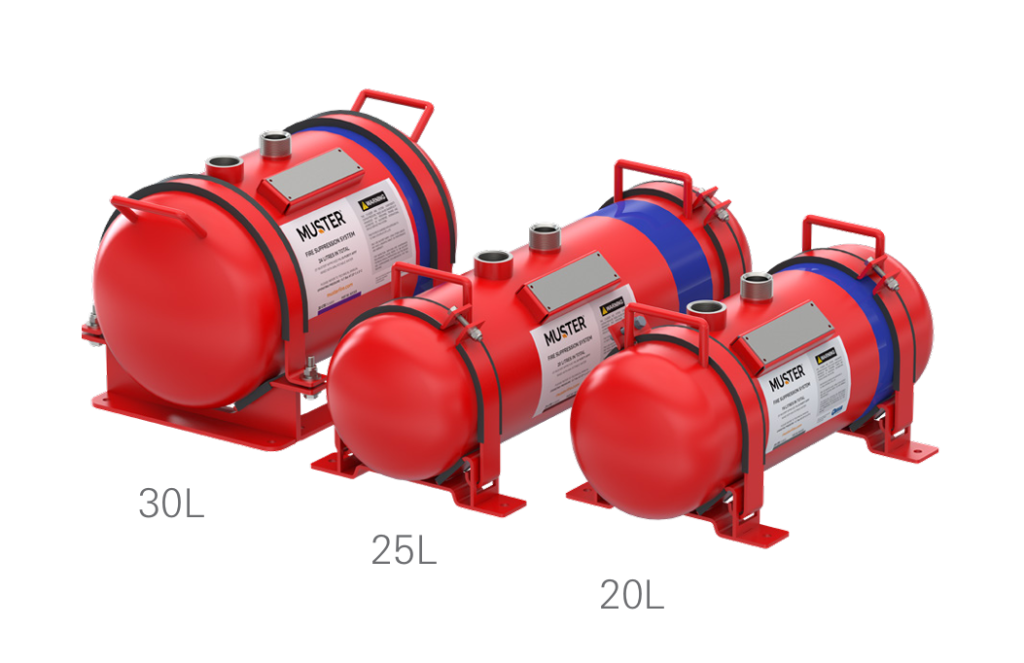

Lay-flat Cylinders

LAY FLAT CYLINDERS
Available in 20L to 66L capacities, these compact cylinders are ideal for small machines with limited installation space.
Built to withstand shock and vibration, they integrate seamlessly with existing Muster Foam Fire Suppression Systems, ensuring robust protection without the bulk.

Muster Cylinder Sizes


Cylinder Sizes
		C6 Purity Ratio		F3 Ratio
Total Volume	Fill	Water	C6 Purity AFFF	Water	F3 Foam	Weight (Empty/Full)
15L	12.0L	11.880L	0.120L	11.760L	0.240L	13kg/25kg
23L	18.5L	18.315L	0.185L	18.310L	0.370L	15kg/33.5kg
38L	30.4L	30.096L	0.304L	29.792L	0.608L	27kg/57.4kg
45L	45L
66L	52.8L	52.272L	0.528L	51.744L	1.056L	42kg/94.8kg
110L	88.0L	87.120L	0.880L	86.20L	1.760L	52kg/140kg

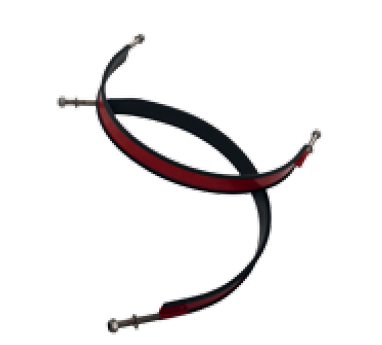

Cylinder Straps


Part No.	Part Desc.	Part Desc.
M2CS01	Strap for 22L and 38L Cylinder Bracket	Strap includes protective rubber & nuts (Single)
M2CS02	Strap for 66L and 110L Cylinder Bracket	Strap includes protective rubber & nuts (Single)
M2CS03SL	Strap for 15L and 23L Cylinder Bracket	Strap includes 2 pieces with protective rubber & bolt set

Associated Components and Spare Parts


Associated Components and Spare Parts
	Part No.	Part Desc.	Notes
	M2CXXX	Muster Foam Cylinders	M2C015SL 15 litres Slimline Cylinder M2C023SL 23 litres Slimline Cylinder M2C038 38 litres Cylinder M2C045 45 litres Cylinder M2C066 66 litres Cylinder M2C110 110 litres Cylinder

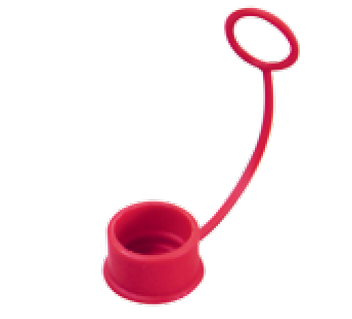

	M2NC01	Safety Relief Dust Cover	Same as MusterCap
	M2PBK01	Replacement Button with Decal	Suits both Push Button Type remote actuators
	M2WMM8	Muster M8 Weld Mount	Suitable for M2CB01523
	M2CBHMKM8	Muster Cylinder Bracket, Hard Mount Kit-M8	Suitable for M2CB01523
	M2VM50	Vibration Eliminator Weld Mount 50mm
	M2WMM12	Muster M12 WeldMount	Suitable for M2CB038, M2CB045, M2CB066, and M2CB110
	M2CBVEK	Muster Cylinder Bracket Vibration Eliminator Kit	Suitable for M2CB038, M2CB045, M2CB066, and M2CB110
	M2VE34	Muster Cylinder Vibration Eliminator 34mm	High density rubber and nylon Comes with: 1 x Nylon base 1 x Rubber ring 1 x M12 x 60mm bolt 1 x M12 nut 1 x 52mm OD Flat Washer 1 x 35mm OD Flat washer 1 x M12 Spring washer
	M2CBHMK	Muster Cylinder Bracket Hard Mount Kit	Suitable for M2CB038, M2CB045, M2CB066, and M2CB110
