iField Automatic Lubrication
Amet Industries install and maintain iField automatic lubrication systems. iField lubrication pumps ensure reliable, uniform grease distribution to essential equipment, boosting longevity and reducing service interruptions.
From mining operations to industrial plants and transport fleets, our iField lubrication pumps, remove the need for manual lubrication, enhancing worker safety and keeping assets performing at peak capacity.

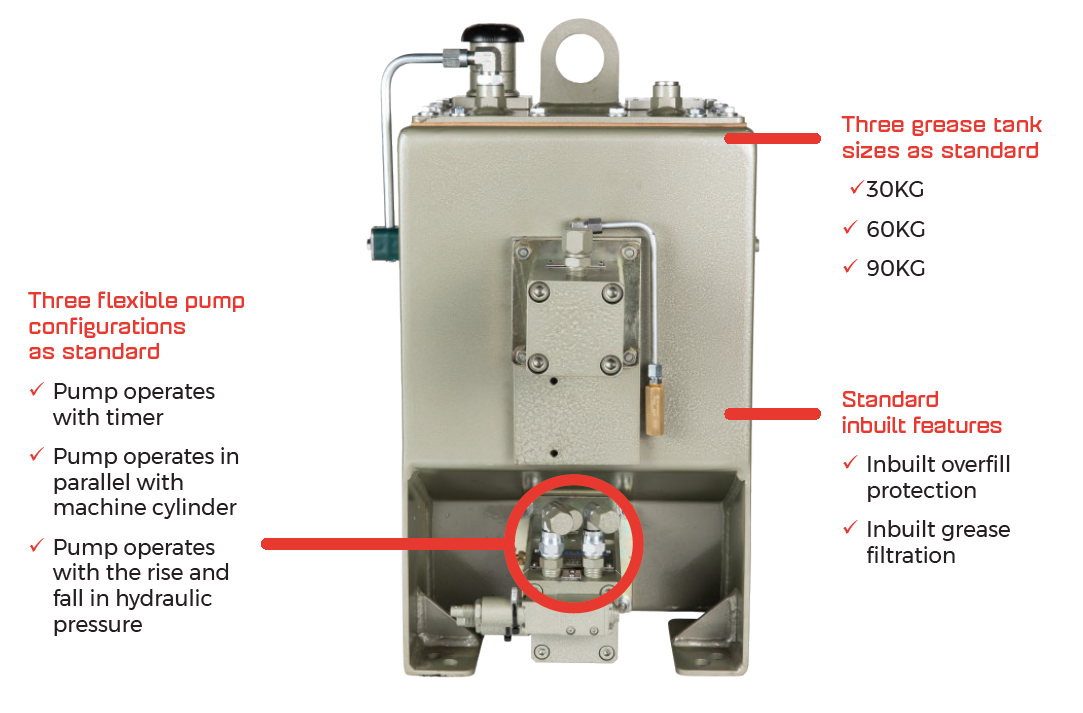

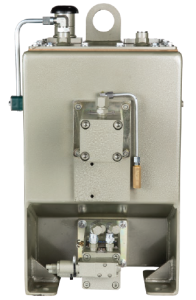

EASILUBE®
High volume single shot grease pumps designed for mobile equipment lubrication systems
Easilube® is a high volume, single shot, hydraulic grease pump that displaces enough grease within one stroke of its piston to fire a complete injector system or complete a progressive system lube event.
Innovative Design
High-Volume Single-Stroke Delivery
One piston stroke dispenses enough grease to complete a full lubrication cycle for injector or progressive systems-no wasted effort or partial cycles.
Vent Valve Eliminated
The pump automatically resets by drawing back on the grease outlet, making separate vent valves unnecessary and simplifying the entire system.
No Reversing Valves or Reciprocating Parts
Fewer moving components mean simpler operation, faster troubleshooting and lower maintenance costs.
Built to Last
Heavy-Duty Steel Construction
6mm (0.25″) thick steel tank paired with a solid steel pump body delivers strength for the harshest environments.
Minimal Complexity
Just 2 pistons and 1 rod-fewer parts to fail, easier to maintain, higher uptime.
Professional-Grade Filtration
7500 psi non-bypass, high-flow filter protects the system and grease quality.
Proven Track Record
Over 1 million operating cycles and 15+ years of field-proven performance in mining operations.
3-year warranty on the pump element.
Elegant Engineering
Low-Pressure Tank Design
A mechanical shut-off valve (no follower plate required) keeps tank pressure below 3 psi-eliminating the need for pressure vessel certification and testing.
Intelligent Auto-Reset
The system resets automatically, even when fill-line pressure exceeds 5000 psi, with zero manual intervention.
Adaptable to Your Operation
Multiple Operating Modes
Run on a timer, synchronise with machine cylinders, or respond to hydraulic pressure changes-choose the mode that fits your workflow.
Tank Options
Available in 30kg, 60kg, and 90kg sizes to match fleet or single-machine needs.
Standard Protection
Overfill protection and grease filtration come built-in-no extras to buy or install.
Wide Equipment Compatibility
Suited for dozers, loaders, graders, excavators, trucks, scrapers, and retrofit-ready for existing systems. Can deliver proportional lubrication based on actual machine load without electrical timers.
| Easilube® Part Numbers | |
|---|---|
| Part Number | Description |
| IP0500-ABLRAB00 | 30kg 50cc Easilube® pump complete with overfill protection, grease filtration operating from hydraulic cycle to suit dozers, loaders, graders, etc |
| IP0500-ABHRAB00 | 30kg 50cc Easilube® pump complete with overfill protection, grease filtration operating from timerc cycle to suit excavators, trucks, etc. |
| IP0500-AB0RAB00 | 30kg 50cc Easilube® pump complete with overfill protection, grease filtration operating in parallel with cylinder to suit scrapers, etc. |

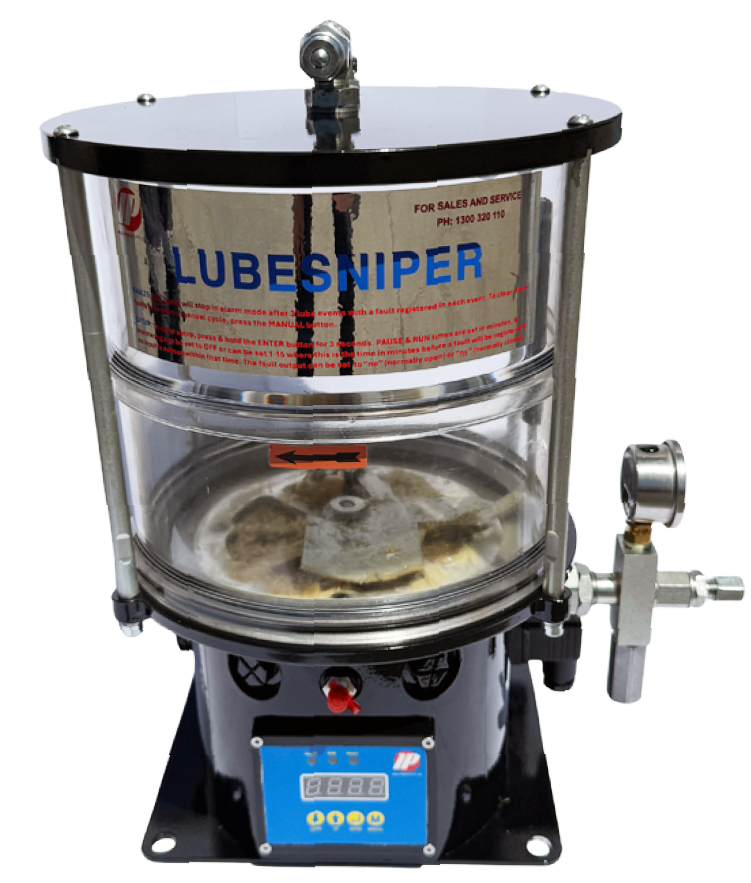

LUBESNIPER
One System, All Your Lubrication Needs
One pump. Two configurations. Three tank sizes. Lubesniper delivers automatic grease lubrication for both progressive and injector systems without sacrificing features, flexibility.
Available in 3L, 6L, and 9L tank sizes, Lubesniper is the automatic lubrication system built to work with both progressive and injector setups.
Versatile Design
One Pump, Two Configurations
Lubesniper works seamlessly with both progressive and injector setups-no need to stock multiple pump types or retrain your team on different systems. Simplifies fleet management and cuts operational complexity.
Adjustable Flow Rates
Customise lubrication delivery to match your specific equipment without swapping pump elements.
Built-In System Monitoring
Run, fault, and low-level status lights with integrated monitoring plug enable predictive maintenance and early problem detection before downtime strikes.
Intuitive Control Panel
Simple timer-based operation with a digital display for instant status checks. Minimal operator training is required.
Robust Construction
Heavy-Duty Metal Build
Reinforced metal body and lid engineered for mining, industrial, and high-stress environments. Proven durability across demanding applications.
Three Tank Capacities
Available in 3L, 6L, and 9L sizes-scale the system to match single equipment or entire fleet requirements.
Integrated Grease Filtration
High-pressure filtration protects the system and maintains lubrication quality throughout the pump’s life, extending component longevity.
5000-PSI Bulk Fill Protection
Coupled rated shut-off valve prevents overfilling and product waste during high-pressure refills-a critical safety feature for demanding operations.
Flexible Configurations
Progressive Mode
Sequential lubrication of multiple points across conveyors, slides, and linear systems with precise flow control and timing.
Injector Mode
Direct injection into hydraulic and pneumatic machinery with proportional delivery that matches machine duty in real time.
Expandable Capacity
Optional multi-element configurations (up to 4 pump elements) for larger systems or high-duty applications.
Retrofit-Ready
Swap-out kits available for easy upgrades from competitor systems. Custom valve mounting brackets for non-standard installations.
Built for Any Operation
Suitable for mining equipment, industrial machinery, commercial fleets, and both mobile and stationary applications. Lubesniper adapts to your operation without compromise.
| Lubesniper Part Numbers | |
|---|---|
| Part Number | Description |
| IP1020-3PA000AAA | LUBESNIPER 3-L Progressive pump without overfill protection |
| IP1020-6PA000AAA | LUBESNIPER 6-L Progressive pump without overfill protection |
| IP1020-9PA000AAA | LUBESNIPER 9-L Progressive pump without overfill protection |
| IP1020-3PA000BAB | LUBESNIPER 3-L Progressive pump with overfill protection & ¼” bulk fill coupling |
| IP1020-6PA000BAB | LUBESNIPER 6-L Progressive pump with overfill protection & ¼” bulk fill coupling |
| IP1020-9PA000BAB | LUBESNIPER 9-L Progressive pump with overfill protection & ¼” bulk fill coupling |
| IP1020-3IAEEEAAA | LUBESNIPER 3-L Injector pump without overfill protection |
| IP1020-6IAEEEAAA | LUBESNIPER 6-L Injector pump without overfill protection |
| IP1020-9IAEEEAAA | LUBESNIPER 9-L Injector pump without overfill protection |
| IP1020-3IAEEEBAB | LUBESNIPER 3-L Injector pump with overfill protection & ¼” bulk fill coupling |
| IP1020-6IAEEEBAB | LUBESNIPER 6-L Injector pump with overfill protection & ¼” bulk fill coupling |
| IP1020-9IAEEEBAB | LUBESNIPER 9-L Injector pump with overfill protection & ¼” bulk fill coupling |

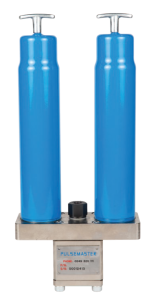

PULSEMASTER
Pulse-Operated Lubrication Pump
Designed to synchronise with pressure pulses from solenoid or proportional valve control, PulseMaster delivers grease proportional to your machine’s actual load and duty. Injector configurations use an AsiVent reset valve for automatic system regulation; progressive setups need nothing more than a direct outlet connection.
Lubrication pumps by iField Products
Innovative Design
Pulse-Responsive Operation
Up to 10 pulses per minute deliver precise, load-matched lubrication that follows your machine’s actual duty cycle. Eliminates over-greasing.
Hydraulic or Pneumatic Control
Works with both hydraulic and pneumatic systems from a single pump using either a solenoid or proportional valve. One pump, flexible control-cuts inventory and simplifies installation.
Configuration-Specific Reset
Injector systems use an optional AsiVent reset valve that automatically resets after reaching target pressure. Progressive systems connect directly with no extra components. Streamlined setup, less complexity.
Elegant & Efficient
Simple Cartridge System
Standard 500g or 650g grease cartridges slip in and out-no bulk filling, no mess, no waste. Clean operation with minimal downtime between refills.
Maximum Reliability, Minimal Parts
Just 1 piston and 1 pump element-no plastic, no internal electronics, nothing to fail. Durability proven in harsh industrial environments.
Proportional Lube Matching
Grease delivery adjusts automatically as hydraulic or pneumatic pressure rises and falls. Machines running harder, get more lube; Machines running lighter, get lower amounts of lube. Perfect for variable-speed equipment.
Flexible Configurations
Operation Modes to Match Your Equipment
Pressure-controlled hydraulic operation. Air-driven pneumatic lubrication. Fixed-interval timer scheduling. Or load-responsive mode where the pump pulses with system demand. Pick the mode that works for your machinery.
Customisable Monitoring & Safety
Add pneumatic or electric low-level monitoring to alert before cartridges run empty. Optional automatic vent valve for system protection. Optional grease outlet filtration maintains product quality. Build the configuration that suits your operation.
Retrofit-Ready, Electrically Independent
Integrates into existing systems without major overhaul. Works with equipment that doesn’t need electrical timers or fixed schedules. Suits both mobile and stationary machinery.
Maintenance Simplified
Cartridge-based design eliminates messy bulk-filling procedures. Servicing is quick and clean. Significantly lower maintenance overhead compared to traditional systems.
Robust Construction
Heavy-Duty Steel Build
Solid steel pump assembly with minimal internal components engineered for industrial duty and long-term performance in the field.

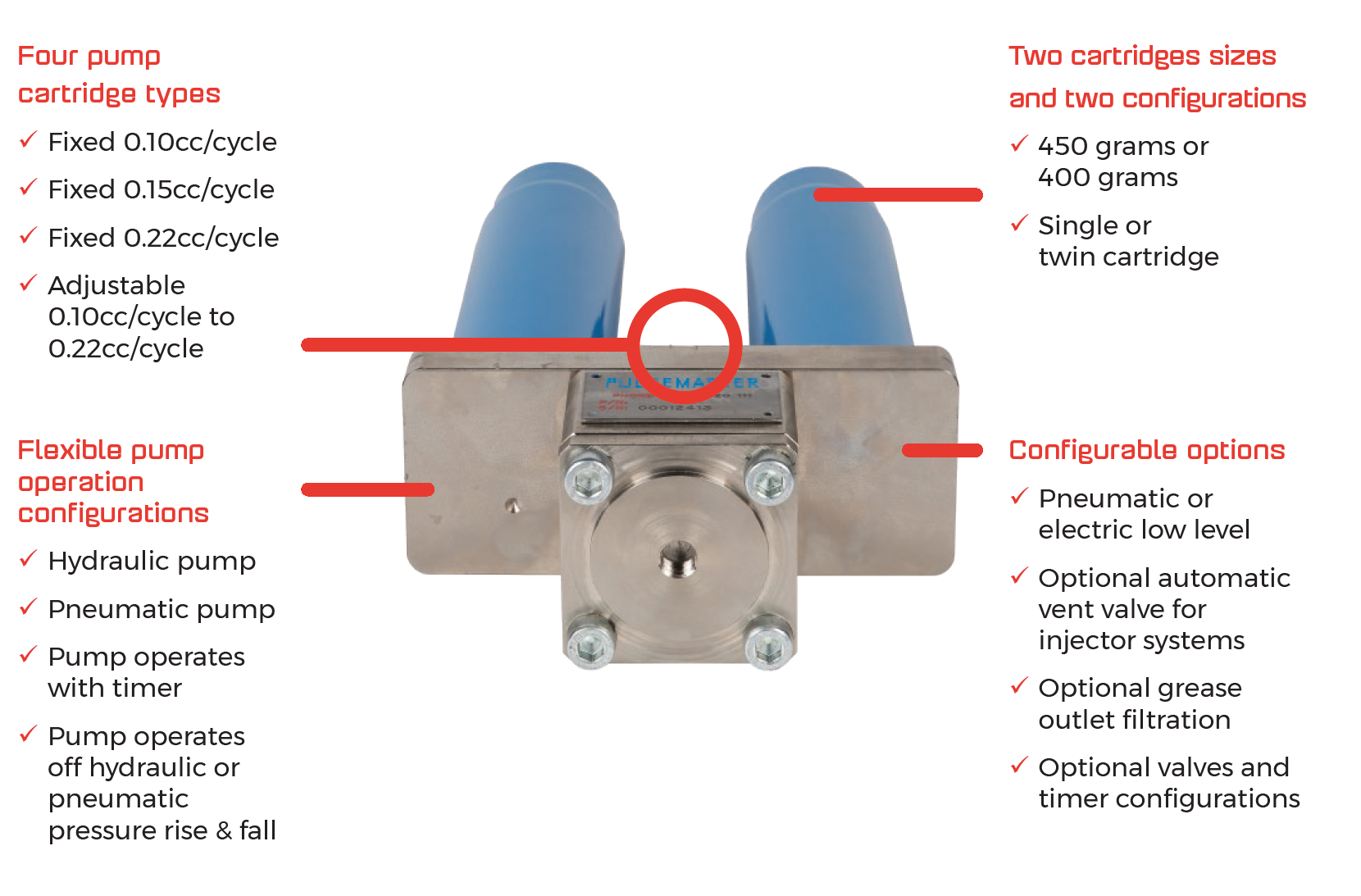

Four Flow Rate Options:
- Fixed 0.10cc/cycle
- Fixed 0.15cc/cycle
- Fixed 0.22cc/cycle
- Adjustable 0.10cc to 0.22cc/cycle
Choose fixed rates for consistent duty or adjustable for equipment with varying loads.
Two Cartridge Capacities
450g or 600g grease cartridges-pair them single or twin based on your application’s duty cycle and service intervals.
| PulseMaster Part Numbers | |
|---|---|
| Part Number | Description |
| IP0901-A00E0000 | 900g PULSEMASTER with 0.22cc/cycle pump element complete with twin 450g cartridges. operating from a machine pneumatic signal for use on road trucks, garbage trucks |
| IP0901-A0BE0000 | 900g PULSEMASTER with 0.22cc/cycle pump element complete with twin 450g cartridges. operating from a 12-V pneumatic valve. |
| IP0901-A0JE0000 | 900g PULSEMASTER with 0.22cc/cycle pump element complete with twin 450g cartridges. operating from a pneumatic valve and pneumatic timer. |
To read more information about iField Automatic Lubrication Products, please visit their website
