Trico Lubrication Pumps, Streamliner Series

Are automatic single point lubricators (SPALs). They are designed to ensure reliable lubrication and cut lubrication costs using advanced control systems.
Automatic single point lubricators are essential for any effective preventative or predictive maintenance program. Streamliner products help ensure that the right lubricant, at the right quantity, in the right frequency, is successfully implemented as the foundation of your predictive/preventive program.
Trico Streamliner Series lubrication pumps can assist today’s lean maintenance teams in effectively managing over/under related lubrication issues identified within their current lubrication practices. SPALs are not just a product, but an effective PM program. They ensure point-to-point accuracy in lubrication. Nothing is more important than managing efficient lubrication in maintenance both in time, labor, and reducing lubricant spend within your facility.

Trico Lubrication Pumps

The right lubrication solutions are required for each industry.

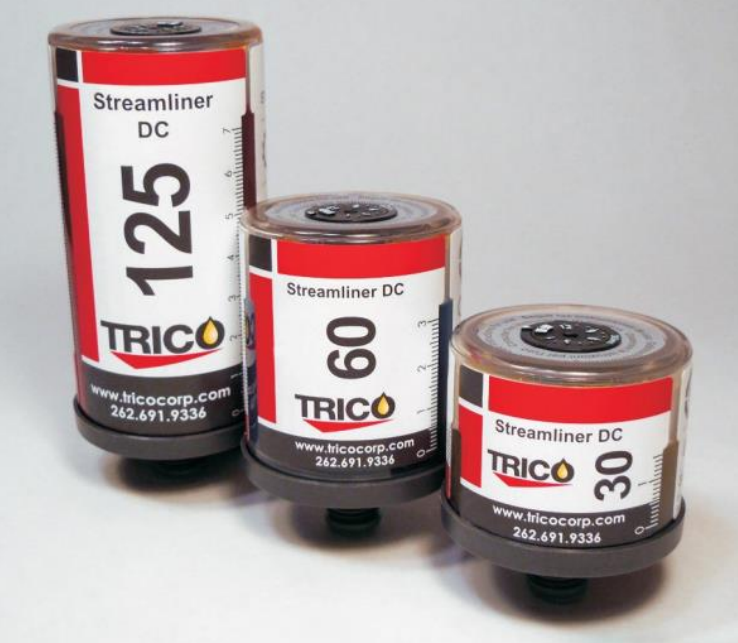

Streamliner DC

Electro-Chemical Units
Reliability personnel have forgone the old manual lube routes and have turned to automatic grease lubricators to manage and maintain lube points.

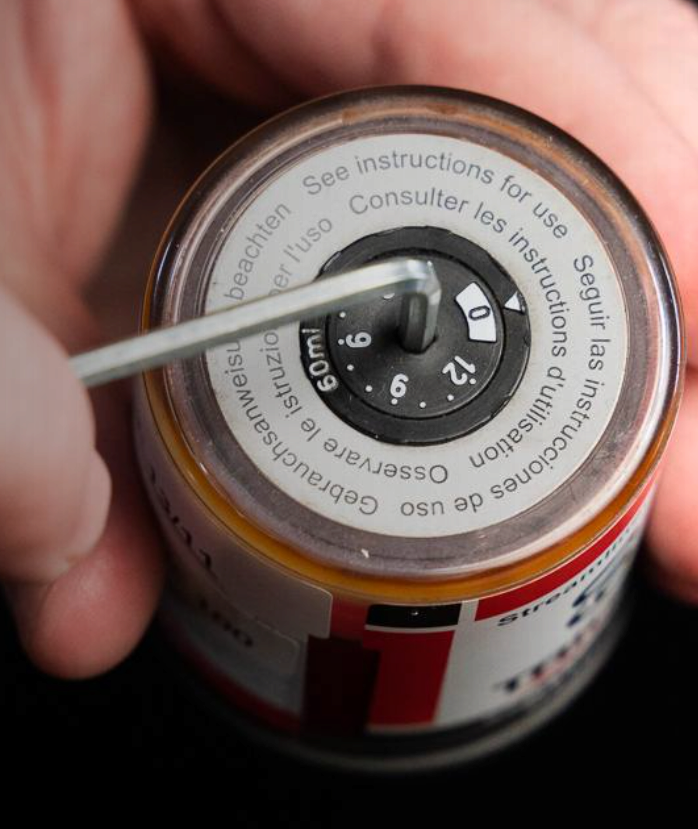

The key to the high degree of reliability with the Streamliner DC is the innovative, fully adjustable gas generating power source. The unit power source generates a gas that creates a consistent pressure on a piston which gradually and continuously dispenses the lubricant contained in the chamber. Delivery time is set on the top of the unit, by adjusting with an Allen key. The unit delivery time is variable and can be set to between one and twelve months, allowing complete control over the amount of lubricant being applied.
Simple to install and activate.

• Powered by a patented gas generating dry cell.
• Adjustable time setting from 1 to 12 months reduces.
• Available in 3 sizes: 30, 60 and 125 ml
• Transparent chamber allows easy visual check of lubricant level.
• Sealed point of contact prevents contamination with dirt and water.
• Easy change of dispensing rate during operation
• Can be deactivated.
• Can be filled with oil or grease

Streamliner V

The Streamliner V, lubrication pump, pro-logic microprocessor chip control allows for programming of the unit to be as simple as pressing a button on top of the unit. The unit operates on the principle of inert Nitrogen gas generation using an electrolyte and electrical energy. Pressure is generated above the piston to deliver fresh and precise amounts of lubricant. The Streamliner V has six variable dispensing rates, from one to twelve months, to cover a wide range of requirements. The Streamliner V is also certified for “intrinsic safety” EX ia IIB T4 for use in hazardous areas.

• Programmable from 1 to 12 months with the simple press of a button
• Large user-friendly LCD display
• Unit can be deactivated and adjusted, as necessary.
• Transparent for easy inspection of lubricant level at a distant
• Indication of operation with a green LED

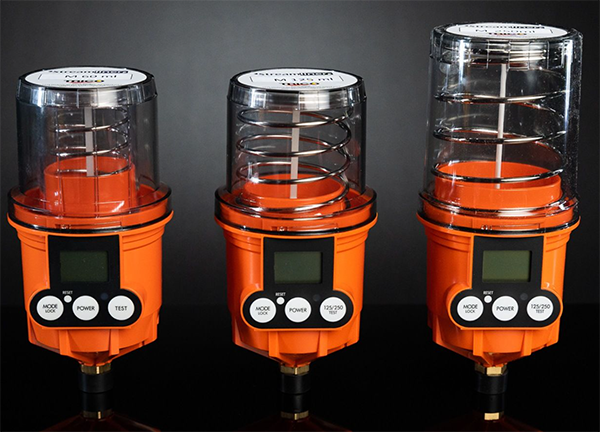

Streamliner M

• Built-in large LCD makes it easy to read and provides all the necessary information to check the condition of the unit and the lubrication point.
• User friendly programming of the lubrication pump is simple with a press of a button.
• Environmentally friendly – Streamliner M is reusable
• High operating pressure of 280 psi allows for remote and multi-point installation of up to 8 points.
• Six variable dispensing rates from half to 12 months
• A tempered steel shaft with a brass finish tip allows the unit to excel in high vibration applications

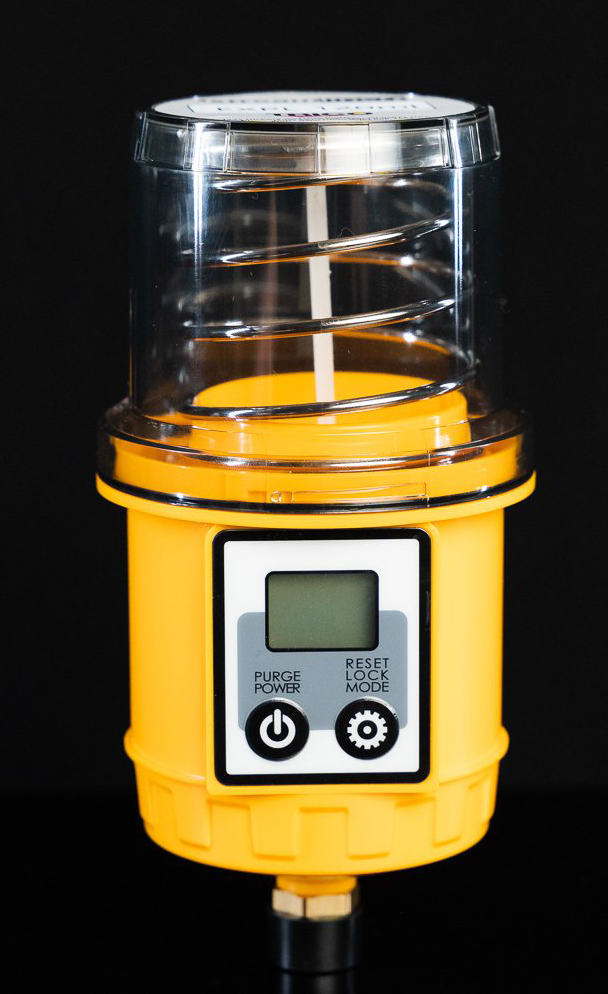

Streamliner M EXPL Grease Dispenser

• Easy to read LCD, the display provides detailed information on the unit and equipment being lubricated,
• Easy adjusts to one of six variable dispensing rates.
• Environmentally friendly – Streamliner M EXPL is reusable
• High operating pressure of 870 psi for contaminant removal Anti-vibration, break-free design
• Unit can be deactivated and adjusted as necessary.
• Durable Construction
• The thread is made of tempered steel with a brass finish, ensuring durability and excellent performance in high-vibration environments.

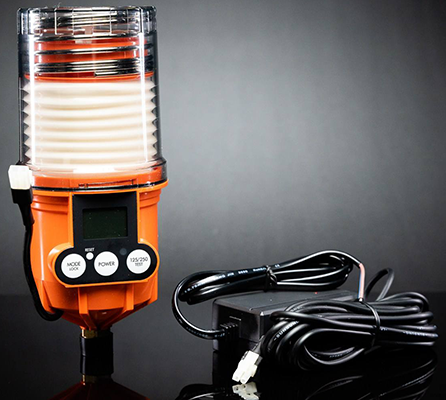

Streamliner MSP – Machine Synchronised Unit

• Easy to read LCD displays.
• Electronic mechanical driven with microprocessor control
• Ideally suited for applications when lubrication occurs, only during machine operation. A feedback signal to the PLC is required.
• Up to eight variable dispensing rates
• Multi-point capability
• No need to change the internal battery pack for up to 5 years (externally powered)

Grease Pouch Capacity: 125cc (4 oz), 250 cc (8oz), and 500 cc (16 oz) (replaceable)
Operating Pressure: 425 psi (30 kgf/cm2)

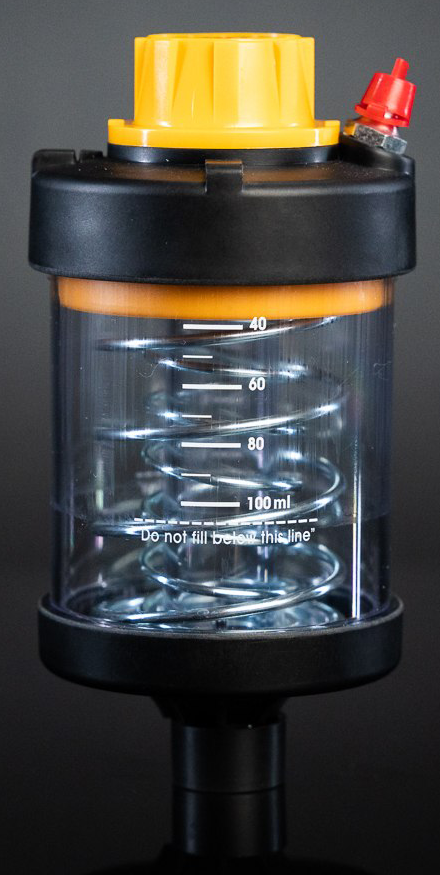

Streamliner S

• Innovative design reduces oil separation.
• Contains a variety of dispensing rates to suit all applications.
• Simple to refill
• Clear reservoir for easy viewing of lubricant level

Product Model Details:
