Remote Grease Line Lubrication

Remote Grease Line Lubrication, automatically lubricates vehicles & machinery. Lubrication is often considered the lifeblood of most machinery. Amet industries install, maintain and supply, quality automatic lubrication systems.

See Catalogue

Irrespective of Dust, Salt Water, Vibration or direct Sunlight

Remote Grease Fitting Kits can be Installed at any chosen Lubrication point.

Remote Grease Line Lubrication

Whether you are maintaining a Truck, Tractor, Ship or a Fixed Plant,

With Amet Industries’ extensive Remote Grease Line Lubrication range, it is possible to grease those hard to reach, dangerous or contaminated grease points.
In even the harshest of conditions, our remote grease line lubrication systems, can meet your greasing needs Australia wide.

⁜ Remote Grease Manifold Line Components

Grease Anchor Blocks

Remote Grease Lines Grease Anchor Block

Grease anchor blocks are used to be the secure common point to where the remote grease lines are run to. To choose the type of grease tubing, you first need to select how many outlets are required (1-8).

Tube Systems

Remote Grease Lines tube system

Grease Line Tubing
• 6mm push in fittings
• 6mm compression fittings
• 8.6mm high-pressure grease hose
• 11.3mm extreme high-pressure grease hose tubing

Lubrication Repair Kits / Grab Kits

GRAB4-Super deluxe grab kit Lubrication Repair

We have made available, Grease Line Repair kits / GRAB kits and Starter kits. These are ideal to have on site for existing installations. Amet Industries sell these Kits, for grease line repair work.

Adaptors,
Reducers & Bulkheads

ATM6X14BSPSS Stainless-steel Straight Adaptor 6mm Male x 1-4bsp female

• Grease fitting reducers
• 45° grease fitting adaptors
• 90° grease fitting adaptors
• Grease banjo fittings
• Grease swivel fittings
• Grease bulkhead fittings

Tools

Grease nipple thread tester GFTT

In this category you will find tools to help Installation
• Tube Cutters
• “Grease” self-adhesive labels
• Grease nipple thread tester to help identify thread sizes

Automatic Lubrication Parts & Accessories

RVCCOM Return Valve Coupling for Lubrication 240

We have a large range of Automatic Lubrication. Fittings that can be used to install or repair automatic lubrication systems.

The Remote Grease Line Lubrication Range
2024 Catalogue – Fittings & Parts

Manufactured to the highest quality standards and can be used in conjunction with conventional Automatic Grease Lubrication Systems.

Remote Grease line parts

Catalogue
REMOTE GREASE LINE LUBRICATON:
Lubrication Compression Fittings & Parts

Remote Grease Bulkheads & Sockets

Remote Grease Anchor Blocks

▽ System Options for Remote Grease Anchor Blocks (click to expand) △
6mm Nylon Tube with Compression Fitting


Rated to 1,291PSI (89 Bar, 8.9MPa)
– Budget and cost effective
– 6mm olive within the compression fitting clamps around 6mm tube once tightened seals system
– Tube lengths up to 2m can be achieved with an electric grease gun and up to 5m can be achieved, by slowly and carefully greasing manually or using a grease divider valve.
– Ideal for mild to moderate environments
– Fittings are also available in stainless steel.

1. SCF1/8BSP: 1/8BSP x 6mm tube compression fitting before assembly (nut & olive).
2. PT25M: 6mm nylon tube complete compression fitting.
3. RGB2: 2 outlet, grease anchor block with grease nipples. T-drilled giving the option to install grease lines at 90-degree angles.

-> catalogue Link <-

6mm Nylon Tube with Anchor Block Compression Fitting

6mm Nylon Tube with Push-In Fittings


Rated to 1,291PSI (89 Bar, 8.9MPa)
– Quick installation.
– Quick disconnect if required.
– 90° Swivel fittings are available making.
installation in tight spaces easy.
– Tube lengths up to 2m can be achieved with an
electric grease gun and up to 5m can be achieved by slowly and carefully greasing manually or using a grease divider valve.
– Ideal for mild to moderate environments

1. PT25M: 6mm nylon tube.
2. PISC1/8BSP: 6mm push in fitting.
3. RGB2: 2-outlet grease anchor block with grease nipples. T drilled giving the option to install grease lines at 90°

-> catalogue Link <-

6mm Nylon Tube Pushin fittings Anchor Block
Stainless Steel 6mm, 8mm and 10mm Rigid Tube


Rated to 5,438PSI (374Bar, 37.4MPa)
– Tube lengths up to 15m can be achieved with 10mm.
– Ideal for extreme environments (i.e. corrosive)
– Can be used with normal steel compression fittings.

1. SS6M8MM: 8mm stainless tube
2. SCF1/8BSPSS: Stainless compression fitting
3. RGB2SS Stainless 2-outlet grease anchor block with Stainless grease nipples. “Not T-drilled”

-> catalogue Link <-

6mm-8mm Stainless-Steel rigid tube
8.6mm and 11.3mm High Pressure Tube with Field Adaptable Reusable Fittings

Rated to 12,184 PSI (840 Bar, 84MPa).
– Field adaptable and easy installation.
– Extreme High Pressure.
– Tube lengths up to 18m (11.3mm).
– Ideal for extreme environments.
– 8.6mm fittings available in stainless steel.
Note: 11.3mm is only available with compression fitting, hose tail and screw Sleeve (1). Not available in JIC or Swivel.

1. Reusable hose stud fitting:
– compression fitting (SCF1/8BSP), hose tail (HSS20M) and screw sleeve (SS)
2. Reusable swivel fitting:
– Swivel hose stud (RHESWSSBSP), Screw Sleeve RHESS
3. Reusable fitting 7-1/16 JIC fittings:
– 1/8BSP to JIC Nipple (JICNIP1/8BSP), JIC hose tail (JIC908.6), Screw Sleeve (SS)

-> 8.6mm catalogue Link <-

8.6mm and 11.3mm high pressure tube with fittings

Grease Divider Valves

6mm Nylon & Stainless – Straight & 90° Compression Fittings

6mm Nylon Tube Systems – Nuts, Olives, Push-Ins

8.6mm Extreme High-Pressure Tube Systems – Tube, Hose Studs

8.6mm Extreme High-Pressure Tube Systems – Screw Sleeves, End Studs, End Swivels, JIC

11.3mm Extreme High-Pressure Tube – Tube, Sleeves, Studs

11.3mm Extreme High-Pressure Tube – Straight & 90°Compression Fittings, Nuts & Olives

Adapters & Reducers – Straight

4mm Grease Fittings and Tube

Clamps & Ties

Automatic Lubrication Parts & Accessories

Grease Nipples

Tools

Remote Grease Line Repair Kits / Grab Kits & Starter Kits

Remote Grease Fitting Kit / Lubrication Repair Kits
GKNT3-SCF1/8BSP - 6mm Nylon Tube Remote Grease Kit with Straight Compression Fittings
6mm Nylon Tube Remote Grease Kit with Straight Compression FittingsGKNT1-XXX 1 outlet kit c/w anchor block with grease nipples, 3m x 6mm tube, 2 comp fittings
GKNT2-XXX 2 outlet kit c/w anchor block with grease nipples, 6m x 6mm tube, 4 comp fittings
GKNT3-XXX 3 outlet kit c/w anchor block with grease nipples, 9m x 6mm tube, 6 comp fittings
GKNT4-XXX 4 outlet kit c/w anchor block with grease nipples, 12m x 6mm tube, 8 comp fittings
GKNT5-XXX 5 outlet kit c/w anchor block with grease nipples, 15m x 6mm tube, 10 comp fittings
GKNT6-XXX 6 outlet kit c/w anchor block with grease nipples, 18m x 6mm tube, 12 comp fittings
GKNT8-XXX 8 outlet kit c/w anchor block with grease nipples, 25m x 6mm tube, 16 comp fittings
▷ Note: Change XXX to the fitting thread and orientation you require. Ie GKNT8-CF906M
GKNT8/JIC-JIC8.6-JICNP1/8BSP - 8.6mm High Pressure Grease Kit with JIC Hose Ends
8.6mm High Pressure Grease Kit with JIC Hose EndsGKNT1/JIC-XXX-YYY 1 outlet kit c/w anchor block with grease nipples, 5m x 8.6mm hose, 2 high pressure JIC fitting assemblies
GKNT2/JIC-XXX-YYY 2 outlet kit c/w anchor block with grease nipples, 10m x 8.6mm hose, 4 high pressure JIC fitting assemblies
GKNT3/JIC-XXX-YYY 3 outlet kit c/w anchor block with grease nipples, 15m x 8.6mm hose, 6 high pressure JIC fitting assemblies
GKNT4/JIC-XXX-YYY 4 outlet kit c/w anchor block with grease nipples, 20m x 8.6mm hose, 8 high pressure JIC fitting assemblies
GKNT5/JIC-XXX-YYY 5 outlet kit c/w anchor block with grease nipples, 25m x 8.6mm hose, 10 high pressure JIC fitting assemblies
GKNT6/JIC-XXX-YYY 6 outlet kit c/w anchor block with grease nipples, 30m x 8.6mm hose, 12 high pressure JIC fitting assemblies
GKNT8/JIC-XXX-YYY 8 outlet kit c/w anchor block with grease nipples, 40m x 8.6mm hose, 16 high pressure JIC fitting assemblies
▷ Note: Change XXX to the fitting orientation and the YYY to the nipple you require. Ie GKT8/JIC-458.6-JICNIP8MM
GKNT8/HS-SCF1/8BSP - 8.6mm High Pressure Grease Kit with Hose Studs and Compression Fittings
8.6mm High Pressure Grease Kit with Hose Studs and Compression FittingsGKNT1/HS-XXX 1 outlet kit c/w anchor block with grease nipples, 5m x 8.6mm hose, 2 high pressure fitting assemblies
GKNT2/HS-XXX 2 outlet kit c/w anchor block with grease nipples, 10m x 8.6mm hose, 4 high pressure fitting assemblies
GKNT3/HS-XXX 3 outlet kit c/w anchor block with grease nipples, 15m x 8.6mm hose, 6 high pressure fitting assemblies
GKNT4/HS-XXX 4 outlet kit c/w anchor block with grease nipples, 20m x 8.6mm hose, 8 high pressure fitting assemblies
GKNT5/HS-XXX 5 outlet kit c/w anchor block with grease nipples, 25m x 8.6mm hose, 10 high pressure fitting assemblies
GKNT6/HS-XXX 6 outlet kit c/w anchor block with grease nipples, 30m x 8.6mm hose, 12 high pressure fitting assemblies
GKNT8/HS-XXX 8 outlet kit c/w anchor block with grease nipples, 40m x 8.6mm hose, 16 high pressure fitting assemblies
▷ Note: Change XXX to the fitting thread and orientation you require. Ie GKT8H-CF906M
SCAM/x: S-Cam Starter Kit
SCAM-3 Lubrication S-Cam Starter KitSCAM/3 3 POINT S-CAM STARTER KIT INCLUDES:
1 x 3 point 1/8BSP grease block c/w grease nipples
6 x Straight 1/8BSP x 6mm tube compression fittings
3 x 90° Adaptor 1/8BSP Male x 1/8BSP Female
2 x Straight Adaptor M6/1 Male x 1/8BSP Female
2 x Straight Adaptor 1/4UNF Male x 1/8BSP Female
1 x Straight Extension 1/8BSP Male x 1/8BSP Female
(23mm)
1 x 10m 6mm nylon tube
SCAM/6 6 POINT S-CAM STARTER KIT INCLUDES:
1 x 6 point 1/8BSP grease block c/w grease nipples
12 x Straight 1/8BSP x 6mm tube compression fittings
6 x 90° Adaptor 1/8BSP Male x 1/8BSP Female
4 x Straight Adaptor M6/1 Male x 1/8BSP Female
4 x Straight Adaptor 1/4UNF Male x 1/8BSP Female
2 x Straight Extension 1/8BSP Male x 1/8BSP Female
(23mm)
1 x 25m 6mm nylon tube
GRAB1-x: Remote Grease Fitting Kit / Grab Kit
GRAB1-F Grab1-E Remote Grease Fitting KitGRAB1-F
GRAB1-E 		Remote Grease Fitting Kit INCLUDES:
1 x carry assortment case
10m x 8.6mm hose (GRAB1-F= filled GRAB1-E= empty) 5 x 90° M6 x 6mm comp fittings
5 x 90° 1/8BSP x 6mm comp fittings
6 x Straight M6 x 6mm comp fittings
6 x Straight 1/8BSP x 6mm comp fittings 5 x 6mm x 6mm compression connector 3 x 1/4BSPM x 1/8BSPF reducer
5 x 45° 1/8BSP adaptors 5 x 90° 1/8BSP adaptors
3 x 45° hose studs 5 x 90° hose studs
10 x Straight hose studs 6 x double ended hose studs 20 x screw sleeves
10 x compression nuts 10 x olives
20 x 1/8BSP Straight grease nipples 1 x thread tape
1 x tube cutter
GRAB2 - Remote Grease Fitting Kit / Push-In Fitting / Grab Kit
GRAB2-Remote Grease Fitting Kit Push-inGRAB2 Remote Grease Fitting Kit PUSHIN FITTINGS INCLUDES:
1 x carry assortment case
10m x 6mm high pressure nylon tubing
10 x Straight M6 x 6mm tube push in fittings 5 x Straight M8 x 6mm tube push in fittings
10 x Straight 1/8BSP x 6mm tube push in fittings 5 x 90° M6 x 6mm tube push in fittings
5 x 90° 1/8BSP x 6mm tube push in fittings
10 x 90° swivel M6 x 6mm tube push in fittings 5 x 90° swivel M8 x 6mm tube push in fittings
10 x 90° swivel 1/8BSP x 6mm tube push in fittings 5 x 6mm x 6mm Straight push in fitting connectors
3 x Straight 1/4BSP M x 1/8BSP adaptors 5 x 45 deg 1/8BSPM x 1/8BSPF adaptors 5 x 90° 1/8BSPM x 1/8BSPF Adaptors 20 x 1/BSP Straight grease nipples
1 x thread tape
1 x tube cutter
GRAB3: Compression Fittings / Grab Kit
GRAB3 Remote Grease Fitting Kit- Compression FittingsGRAB3 COMPRESSION FITTING GRAB KIT INCLUDES:
1 x carry assortment case
10m x 6mm high pressure nylon tubing
10 x 90° M6 x 6mm tube comp fittings
5 x 90° M8 x 6mm tube comp fittings
10 x 90° 1/8BSP x 6mm tube comp fittings
10 x Straight M6 x 6mm tube comp fittings
5 x Straight M8 x 6mm tube comp fittings
10 x Straight 1/8BSP x 6mm tube comp fittings
5 x Straight 1/4BSP x 6mm tube comp fittings
5 x 6mm x 6mm Straight comp fitting connectors
5 x Straight 1/4BSP M x 1/8BSP Adaptor
5 x 45° 1/8BSPM x 1/8BSPF Adaptors
5 x 90° 1/8BSPM x 1/8BSPF adaptors
2 x Bulkheads 1/8BSPF x 6mm tube
10 x compression nuts
10 x olives
20 x 1/BSP Straight grease nipples thread tape
1 x tube cutter
GRAB4: Super Deluxe Remote Grease Fitting Kit / Grab Kit
GRAB4 Super Deluxe Remote Grease Fitting KitGRAB4 SUPER DELUXE COMBO GRAB KIT INCLUDES:
1 x carry case
25m x 6mm high pressure nylon tubing
10 x 90° M6 x 6mm tube comp fittings
5 x 90° M8 x 6mm tube comp fittings
10 x 90° 1/8BSP x 6mm tube comp fittings
10 x Straight M6 x 6mm tube comp fittings
5 x Straight M8 x 6mm tube comp fittings
10 x Straight 1/8BSP 6mm tube comp fittings
5 x Straight 1/4BSP x 6mm tube comp fittings
5 x 6mm x 6mm straight comp fitting connectors
10 x Straight M6 x 6mm tube push in fittings
5 x Straight M8 x 6mm tube push in fittings
10 x Straight 1/8BSP x 6mm tube push in fittings
10 x 90° swivel M6 x 6mm tube push in fittings
5 x 90° swivel M8 x 6mm tube push in fittings
10 x 90° swivel 1/8BSP x 6mm tube push in fittings
5 x 6mm x 6mm Straight push in fitting connectors
3 x Straight 1/4BSP M x 1/8BSP adaptors
5 x 45° 1/8BSPM x 1/8BSPF adaptors
5 x 90° 1/8BSPM x 1/8BSPF adaptor
5 x 1/4BSPM x 1/8BSPF reducer
10 x compression nuts
10 x olives
20 x 1/8BSP Straight grease nipples
1 x Bulkhead
1 x thread tape
1 x tube cutter
GRAB8-x: 11.3mm Grease Line - Remote Grease Fitting Kit / Grab Kit
GRAB8-F GRAB8-E 11.3mm Grease Line - Remote Grease Fitting KitGRAB8-F
GRAB8-E 		11.3mm GREASE LINE AND FITTING KIT INCLUDES
1 x Carry Case
20m x 11.3mm Grease hose (GRAB8-F= filled GRAB8-E= empty)
20 x 11.3mm screw sleeves
5 x 90° hose stud 8mm for 11.3mm hose (22mm x 36mm)
5 x 45° hose stud 8mm for 11.3mm hose (22mm x 45mm)
10 x Straight hose stud 8mm for 11.3mm hose (20mm)
10 x Straight M6 x 8mm tube comp fitting
10 x Straight 1/8BSP x 8mm tube comp fitting
5 x 8mm x 8mm Straight comp fitting connector
10 x 90° 1/8BSP x 8mm tube compression fitting
5 x Straight adaptor M6/1.0 male x 1/8BSP female
5 x 90° adaptor M6/1M Male x 1/8BSP Female
5 x Straight adaptor M8 male x 1/8BSP female
5 x 45° adaptor 1/8BSP Male x 1/8BSP Female
90° adaptor M8/1M Male x 1/8 BSP Female
5 x Straight adaptor 1/4BSP Male x 1/8BSP Female 20mm
10 x 8mm Olive “LL”
10 x 8mm nut “LL”
1 x Tube Cutter
GRAB9: 11.3mm Grease Line Remote Grease Fitting Kit / Grab Kit
GRAB9 11.3mm Grease Line Remote Grease Fitting KitGRAB9 1/4BSP FEMALE SINGLE POINT LUBRICATOR KIT
1 x Carry Case
40 x Straight adaptor 1/8BSP male x 1/4BSP female
20 x Straight adaptor 1/4BSP Male x 1/8BSP Female 20mm
20 x 45° adaptor 1/8BSP male x 1/8BSP female
20 x 90° adaptor 1/8BSPM x 1/8BSP female
10 x Straight extension 1/8BSP male x 1/8BSP Female 35mm
10 x Straight extension 1/8BSP male x 1/8BSP Female 50mm
10 x 45° adaptor M6 male x 1/8BSP female
10 x Straight adaptor M6 male x 1/8BSP female
10 x Straight adaptor M8 male x 1/8BSP female
10 x Straight adaptor 1/4UNF male x 1/8BSP female
GRABEMPTY-x: Empty Remote Grease Fitting Kit / Grab Kit
GRABEMPTY-L GRABEMPTY-S Empty Remote Grease Fitting KitGRABEMPTY-L Large grab kit - empty
GRABEMPTY-S Small grab kit – empty

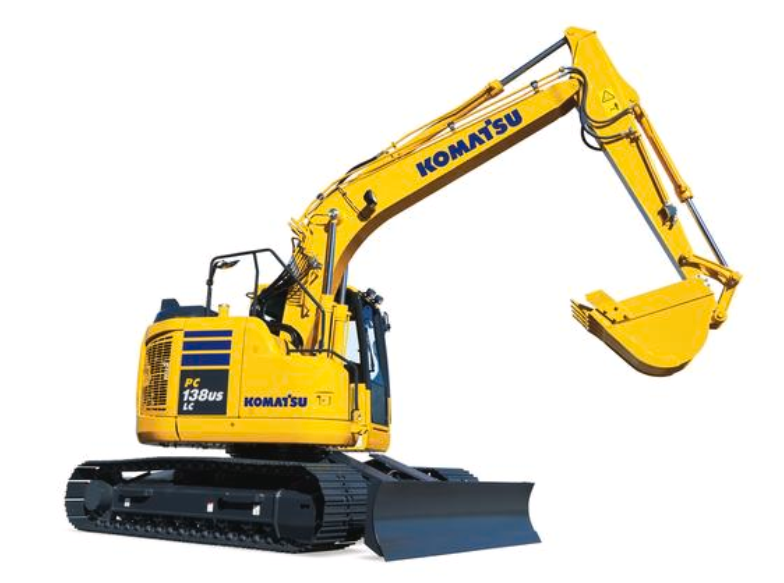

Remote Grease Line Lubrication on a Komatso p138 Excavator

Remote Grease Line Lubrication Systems can be customised to suit your application.

Contact Us

for orders, quotes and information on Remote Grease Line Lubrication HERE
or call us on 1300 650 823

Mon – Fri: 9am–5pm
Sat & Sun: Closed
